DR10 Deposit Rater Thermal Oxidation Stability of Turbines Fuels(JFTOT) AD systems
Category： Others
Method Standard： ASTM D3241 IP 323, ISO 6249 ASTM D1655, D7566 DEF STAN 91-91
Application： Oil Refining
Brand： AD systems
Hotline：
021 - 63175588
Products description
Products characteristic

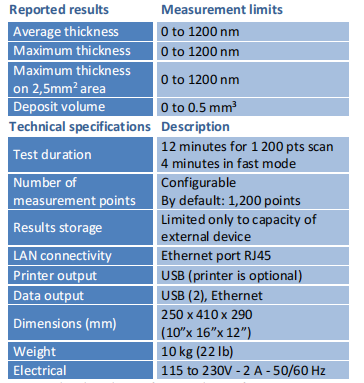

technical specification
The DR10 measures the deposit thickness around the surface of the tube. At the end of the test, it displays in SI units a 3D mapping of the deposit formed along and around the whole length of heater tube. In addition the instrument reports average and maximum thicknesses and total volume deposit.
- Test methods ASTM D3241, IP 323, ISO 6249,GB/T 9169
- Absolute measurement of deposit thickness
- Quick,easy,and objective rating
- Ideal tool for all applications
- Very compact design
- Average deposit thickness:0 to 1200nm
- Maximum deposit thickness:0 to 1200nm
- Maximum deposit thickness area：0 to1200nm
- Deposit volume：0～0.5 mm3
- Test duration：15minutes（maximum）
- Number of measurement points：1,200points
- Results storage：Limited only to capacity of external device
- LAN connectivity:Ethernet port RJ45
- Printer output:USB
- Data output :USB(2),Ethernet
- Dimensions(mm):250X160X290（10”X16”X12”)
- Weight：10kg（22lb）
- Electrical：115 to 230 V - 2A – 50/60HZ
